GRATE C250 55*53*33
GRATE C250 55*53*33
- Product code: FGC50
DIMENSIONS
| Code | Class | Closing | Gasket |
A x B Ext.lenght |
C x D Cover dimensions |
P x P Clear opening |
H Height | Weight KG |
|---|---|---|---|---|---|---|---|---|
| FGC50 | 25 t | HINGE | NO | 560 x 530 | 480 x 480 | 440 x 440 | 40 |
Specifications

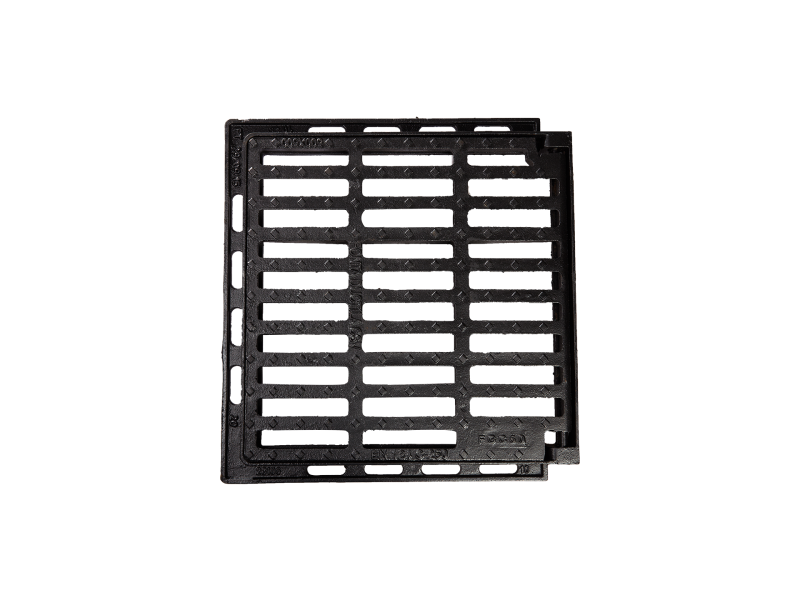

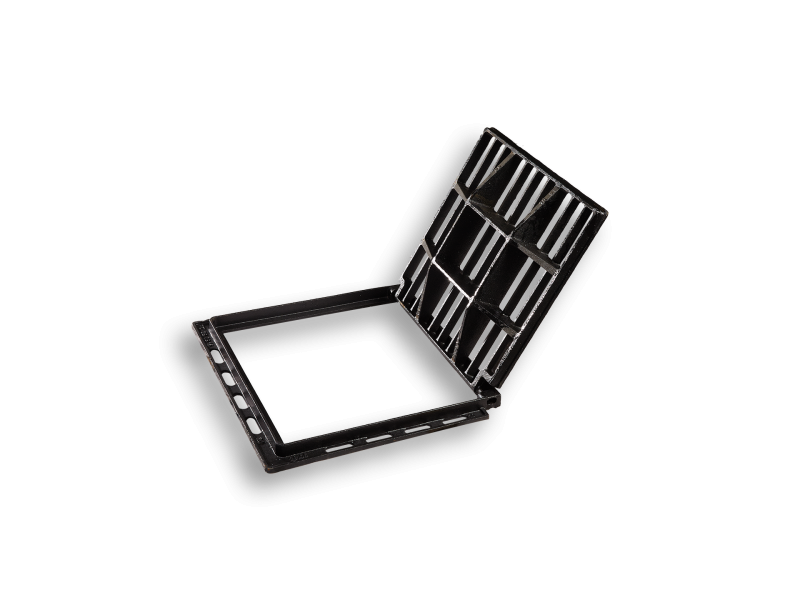

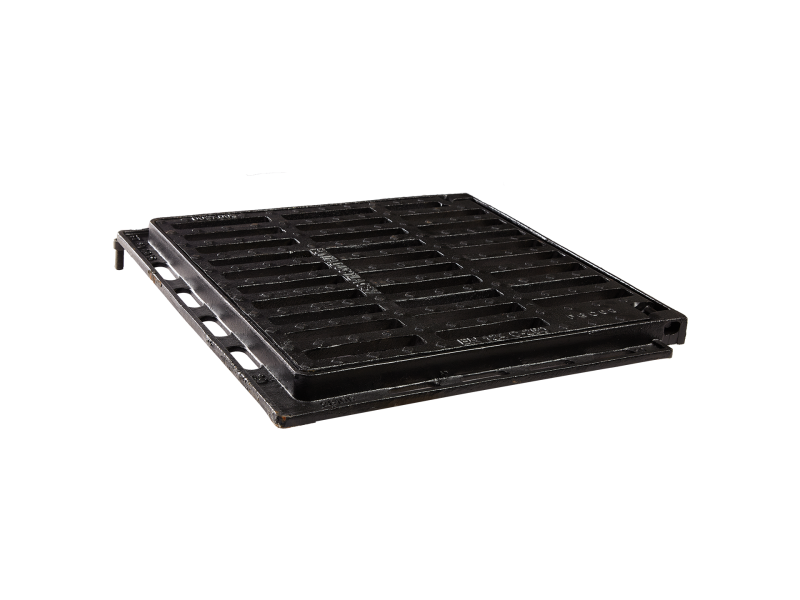

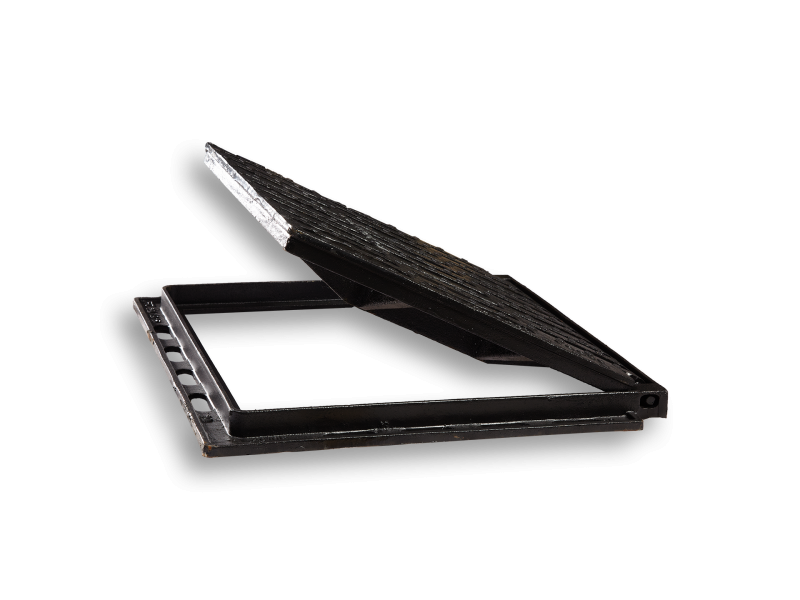

Type - rectangular hinged grate, bolt locking system, anti-slip surface.
Class of Service - C250 minimum 25 tons resistance according to EN 124-1993.
Material - nodular cast iron EN GJS 400-15 in accordance with ISO 1083 standard EN 1563 / A1.
The site - access roads and traffic, stabilized shoulders and space stationary road vehicles, medium traffic.
Applications - distribution channels, drainage networks, pumping stations and water treatment.
Products contained in the Technical Agreement 003-05 / 238-2013.
Pret:
299.90 lei
450.99 lei
